Direction of sobel operator may be wrong

Hi,
I am doing sobel exercise in unit2 of course “OpenCV for Robotics”. In course book the sobel operators are set like:

#Apply the horizontal sobel operator with a kernel size of 3
sobelx = cv2.Sobel(img,cv2.CV_64F,1,0,ksize=3)
#Apply the vertical sobel operator with a kernel size of 3
sobely = cv2.Sobel(img,cv2.CV_64F,0,1,ksize=3)

in order to get this kind of result:

But I use the same statement and get the controdictory results. My code is:

#! /usr/bin/env python
import rospy
import cv2
import numpy as np
from sensor_msgs.msg import Image
from cv_bridge import CvBridge, CvBridgeError


class Sobela_Class():

    def __init__(self):

        self.img = cv2.imread(
            '/home/user/catkin_ws/src/opencv_for_robotics_images/Unit_2/Course_images/test_img_b.jpg')
        self.img = cv2.resize(self.img, (450, 350))
        self.img = cv2.cvtColor(self.img, cv2.COLOR_BGR2GRAY)

    def main(self):

        # sobel operation along with horizontal direction
        self.sobel_x = cv2.Sobel(self.img, cv2.CV_64F, 1, 0, ksize=3)
        # sobel operation along with vertical direction
        self.sobel_y = cv2.Sobel(self.img, cv2.CV_64F, 0, 1, ksize=3)

        # show images
        cv2.imshow('original image', self.img)
        cv2.imshow('sobel_x', self.sobel_x)
        cv2.imshow('sobel_y', self.sobel_y)

        cv2.waitKey(0)
        cv2.destroyAllWindows()


if __name__ == '__main__':

    rospy.init_node("sobela_1_node")
    sobela = Sobela_Class()
    sobela.main()

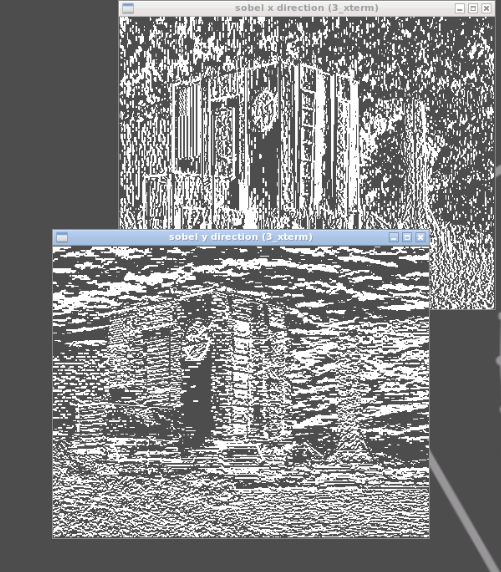

and results are:

I think there may be a mistake. I am new beginner of OpenCV, but I guess there is similarity in OpenCV and Numpy. For example, the representation of 2D array is defined as [y,x], y for so-called colume, x for so-called row. So maybe here sobel_x = cv2.Sobel(img, cv2.CV_64F, 1, 0, ksize=3) is actually for vertical direction and sobel_x = cv2.Sobel(img, cv2.CV_64F, 0, 1, ksize=3) for horizontal direction.
Please let me know if I am wrong.

Hi @MeineLiebeAxt ,

I am quite familiar with OpenCV because I have worked on edge-detection projects.

Yes, Sobel operation on X axis gives you vertical lines and Sobel operation on Y axis gives you horizontal lines.

The images in the tutorial’s notebook must be swapped. Those are wrong at the moment.

Regards,
Girish

Thank you @girishkumar.kannan for confirmation!

Hello @MeineLiebeAxt @girishkumar.kannan ,

I’ve just fixed the order of the images in the notebook. Thanks for the feedback!

Almost three years have passed, and nothing has changed. To be honest, I’m disappointed.

In Exercise 2.6, the path to the example image is still wrong. The instructions specify:
/home/user/opencv_for_robotics_images/Unit_2/Course_images/test_img_b.jpg
while the correct path is actually:
/home/user/catkin_ws/src/opencv_for_robotics_images/Unit_2/Course_images/test_img_b.jpg.

This makes me wonder whether the rest of the course materials suffer from similar issues. Frankly, I don’t see why students should waste time debugging such trivial mistakes.

Overall, this reflects a lack of care in maintaining the course, especially considering that these issues have already been acknowledged in the comments. Because of this, I’m genuinely disappointed and cannot recommend this course.

I still the same image as of 2025.

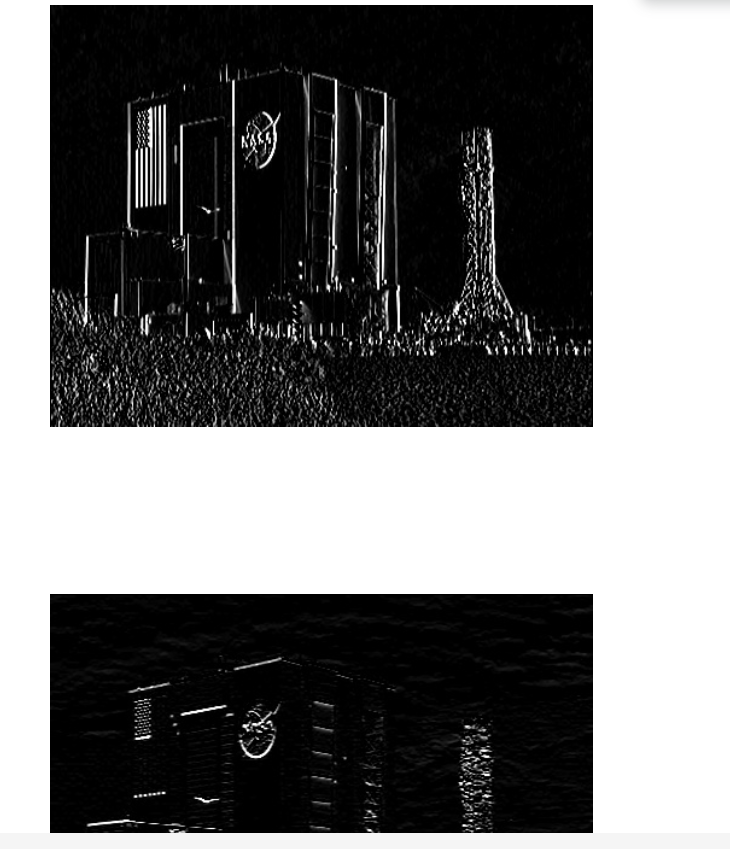

This is what is mentioned in the notebook while what I am getting by sobel operator is this one:
